MARIS
Self Containded LED Marine Lantern
Range 4-5+ NM
IALA E-200-1 COMPLIANT

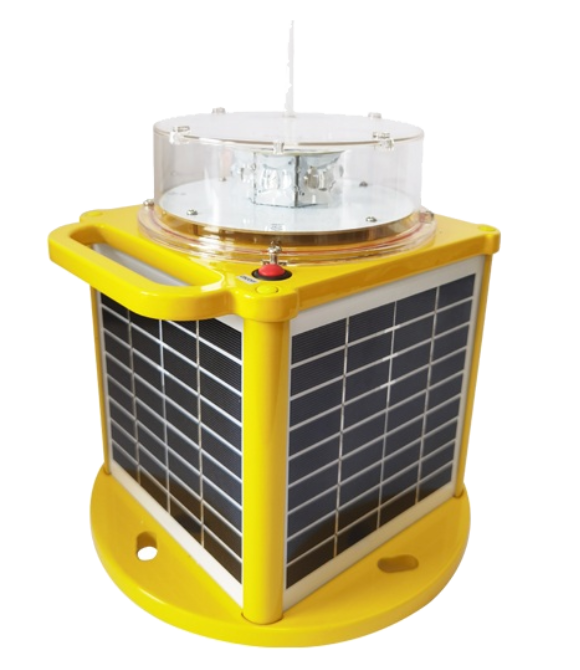

MARIS is the benchmark self-contained solar marine lantern in the deStellys range, engineered to provide reliable and cost-effective performance for standard marine and inland Aids to Navigation (AtoN).
Designed for installation on navigation buoys, beacons, harbor structures, and channel markers, it offers a nominal luminous range of 4 to 5 nautical miles, making it ideally suited for routine navigation marking in coastal, harbor, and inland waterway environments.
Equipped with an integrated solar power system and automatic dusk-to-dawn operation, MARIS delivers autonomous, maintenance-free performance while minimizing operational costs.
Available in the full range of IALA signal colors, it provides clear and compliant visual identification of lateral, cardinal, isolated danger, safe water, and special marks.
Its compact, lightweight, and rugged design enables rapid installation on virtually any fixed or floating AtoN structure, making MARIS a dependable, easy-to-maintain solution with excellent value over its service life.

4 - 5+ NM
Nominal Range

GPS
Synchronization ( Optional)
12 / 20 Ah
Battery Options

4x3.3 W
High Efficiency Solar Panel

360°
Horizontal Coverage
IP68
Waterproof Protection
Available Colors

Red

Green

Yellow

White

Blue
All colors are fully compliant with IALA specifications
APPLICATIONS

Marinas & yacht harbors
Quay marking, mooring buoys, harbor entrances.

Coastal areas
Maritime work, dredging, restricted zone marking, anchorages, wreck.

Inland waterways
Channel marking, river navigation, bank signaling.

Aquaculture
Delimitation of farming areas.
TECHNICAL DATA
Photometric Performance
Visible Range
4–5 NM (AT@0.74)
Intensité max
Red: 90 cd / Green: 72 cd /Yellow: 75 cd / White: 70 cd / Blue: 40 cd
Vertical Divergence
7+ deg
Horizontal Coverage
360 deg
Operation Mode
Dusk-to-dawn automatically (built-in photocell)
Solar Cells
Technology
Mono-crystalline silicon
Power Output
4 × 3.3 Watt
Charging Regulation
Microprocessor controlled
Programming & Configuration
IALA Flash Patterns
360+ flashing modes
Programming Method
Infrared remote controller
Certifications & Compliance
Regulations
IALA E-200-1 ; CE
Warranty
2 years
Life Expectancy
100 000 hours
Electrical Characteristics
Light Source
High Performance LED
Nominal Voltage
12V
Battery
Standard 12Ah / Extended 20Ah
Battery Type
Lithium-ion
Special Features
ON/OFF switch, external charge port, GPS synchronization

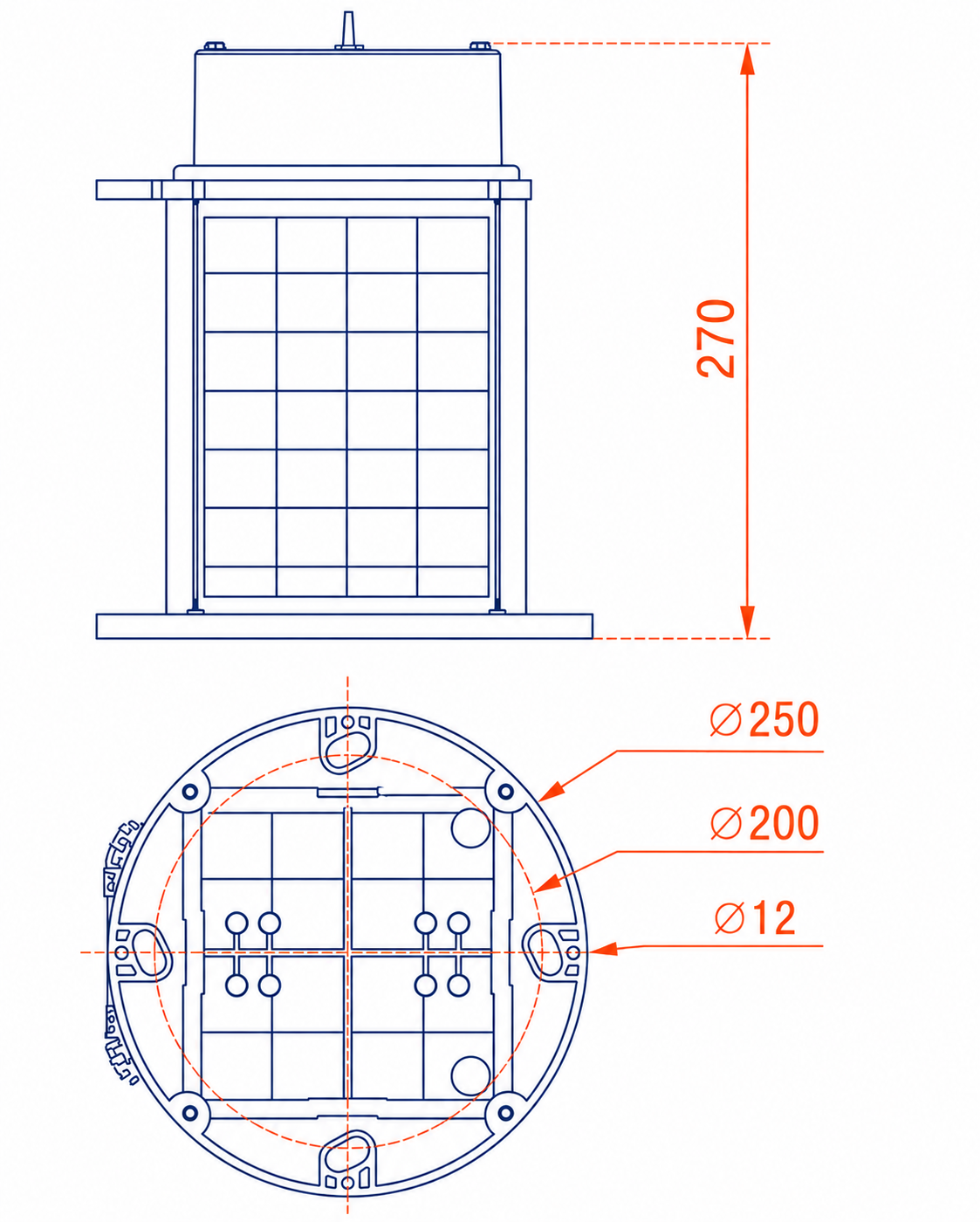

Mechanical Characteristics
Lens Diameter
155 mm
Lens Material
UV protected Polycarbonate
Body Material
Powder Coated Aluminum
Mounting
4 holes on Ø200 mm bolt (M10 pattern)
Dimension
250 × 250 × 270 mm
Weight
Standard 4.5 kg / Extended 4.8 kg
Waterproofing
IP68
Temperature Range
-50°C to +60°C
