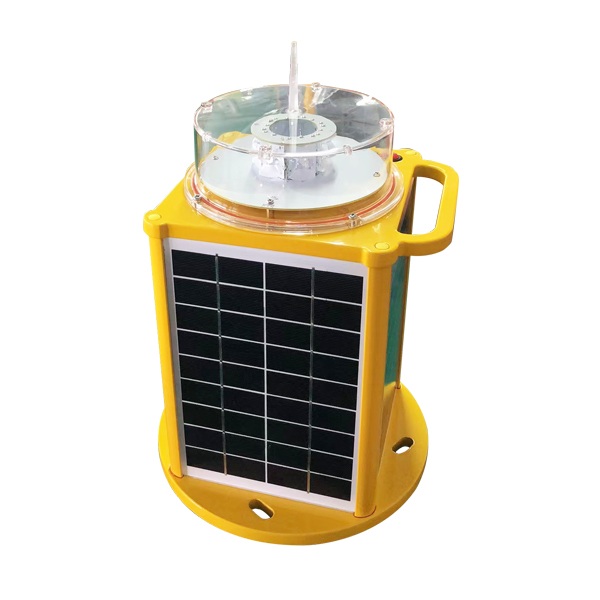

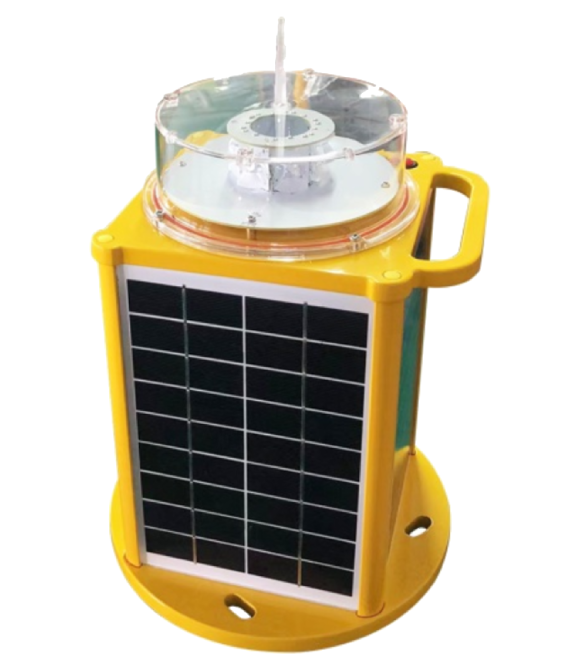

ASTRA
Self Containded LED Marine Lantern
Range up to 10 NM
IALA E-200-1 COMPLIANT
ASTRA is deStellys’ solar marine lantern designed for demanding environments and critical infrastructure. Larger and more powerful than MARIS, it delivers dependable performance for offshore, coastal, port, and inland Aids to Navigation (AtoN) where visibility and reliability are essential.
With a nominal range reaching up to 10 nautical miles, ASTRA is ideally suited to major buoys, exposed beacons, harbor structures, and strategic channel marking.
Equipped with high-efficiency mono-crystalline solar panels, a long-life lithium-ion battery, and infrared remote programming, ASTRA allows flash characteristics to be adjusted without opening the unit.
Its autonomous dusk-to-dawn operation, rugged construction, and availability in the full range of IALA signal colors make it a robust, low-maintenance solution for lateral, cardinal, isolated danger, safe water, and special marks.
Up to 10 NM
Nominal Range
GPS
Synchronization ( Optional)
20 / 30 Ah
Battery Options
4 x 5 W
High Efficiency Solar Panel
360°
Horizontal Coverage
IP68
Waterproof Protection
Available Colors
Red
Green
Yellow
White
Blue
All colors are fully compliant with IALA specifications
APPLICATIONS
Marinas & yacht harbors
Quay marking, mooring buoys, harbor entrances.
Coastal areas
Maritime work, dredging, restricted zone marking, anchorages, wreck.
Inland waterways
Channel marking, river navigation, bank signaling.
Aquaculture
Delimitation of farming areas.
TECHNICAL DATA
Photometric Performance
Visible Range
Up to 10 NM
Max Intensity
According to signal color
Vertical Divergence
7+ deg
Horizontal Coverage
360 deg
Operation Mode
Dusk-to-dawn automatically (built-in photocell)
Solar Cells
Technology
Mono-crystalline Silicon
Power Output
4 × 5 Watt
Charging Regulation
Microprocessor controlled
Programming & Configuration
IALA Flash Patterns
360+ flashing modes
Programming Method
InfraRed Remote Controller
Certifications & Compliance
Regulations
IALA E-200-1 ; CE
Warranty
2 years
Life Expectancy
100 000 hours
Electrical Characteristics
Light Source
High Performance LED
Nominal Voltage
12V
Battery
Standard 20Ah / Extended 30Ah
Battery Type
Lithium-ion battery
Special Features
ON/OFF switch, External charge Port, GPS synchronization

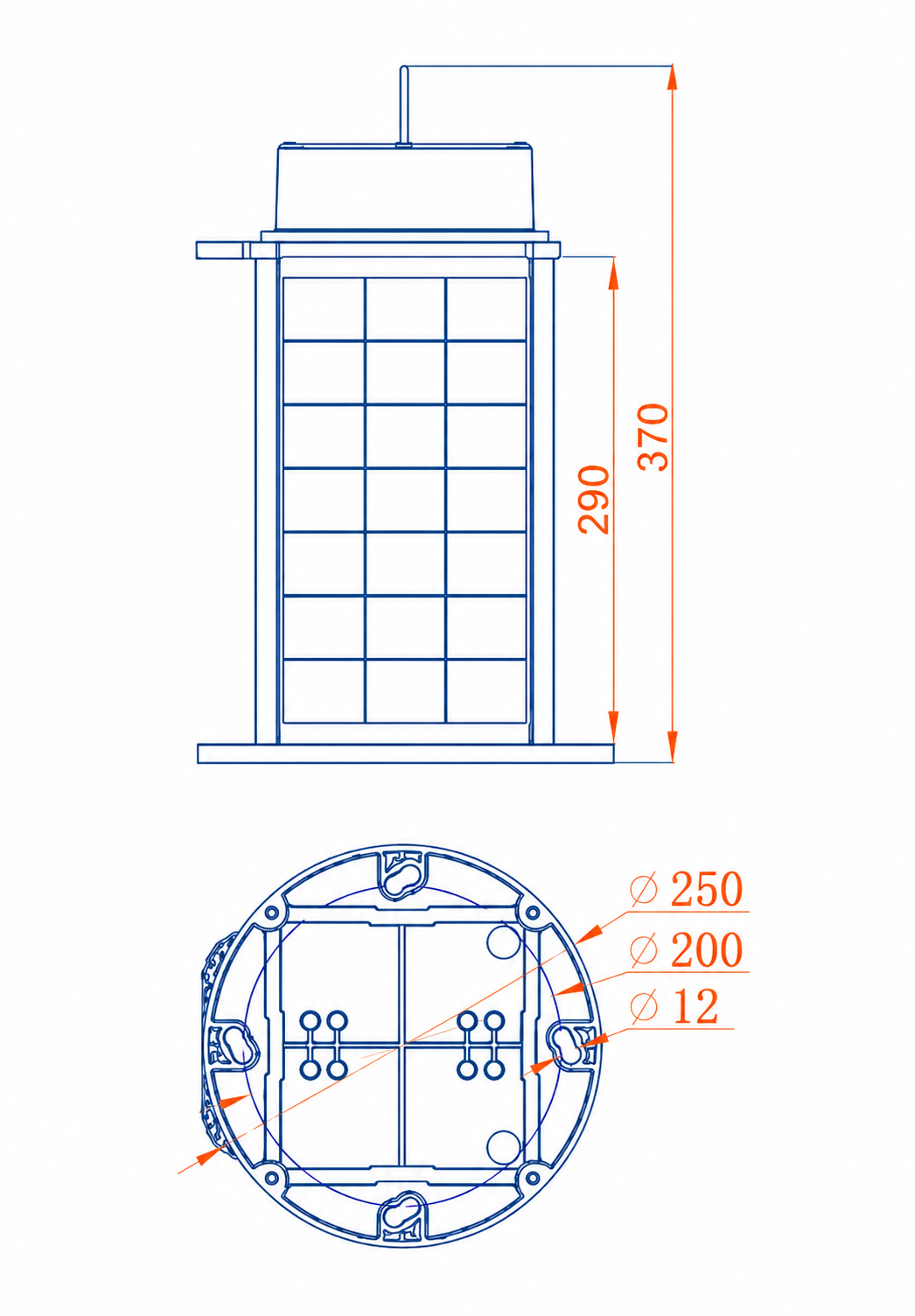

Mechanical Characteristics
Lens Diameter
155 mm
Lens Material
UV protected Polycarbonate
Body Material
Powder Coated Aluminum
Mounting
4 holes on Ø200 mm bolt M10 pattern
Dimensions
250 × 250 × 370 mm
Weight
Standard: 5.8 kg / Extended: 6.4 kg
Waterproofing
IP68
Temperature Range
-50°C to +60°C
